LYRICAL ODE II

ode-2_n-4

Experience evolution with the LYRICAL ODE II system, which combines all the advantages of the LYRICAL MUSE II system with fully recessed tracks below ground level. This system offers architectural solutions for continuity, without interruptions, between the interior and exterior, opening up the space without visible barriers. With easily removable profiles for the maintenance of the recessed tracks, it is designed to be a practical and aesthetically appealing solution for any project. Its modular structure allows the integration of hidden drainage systems, providing an even more personalised user experience.

ODE II PERFORMANCES
THERMAL TRANSMITTANCE (Ug = 1.0)Uw = 1,22 W/m²K (EN 10077)
AIR PERMEABILITYCLASS 4 (EN 12207)
WATER TIGHTNESSE750 (EN 12208)
WIND LOAD RESISTANCE (Standard interlock)A5 (EN 12210)
SOUND INSULATIONRw 41 dB (EN ISO 717-1)
SECURITYRC2 / WK2 (EN 1628, 1629, 1630)

TECHNICAL DRAWINGS

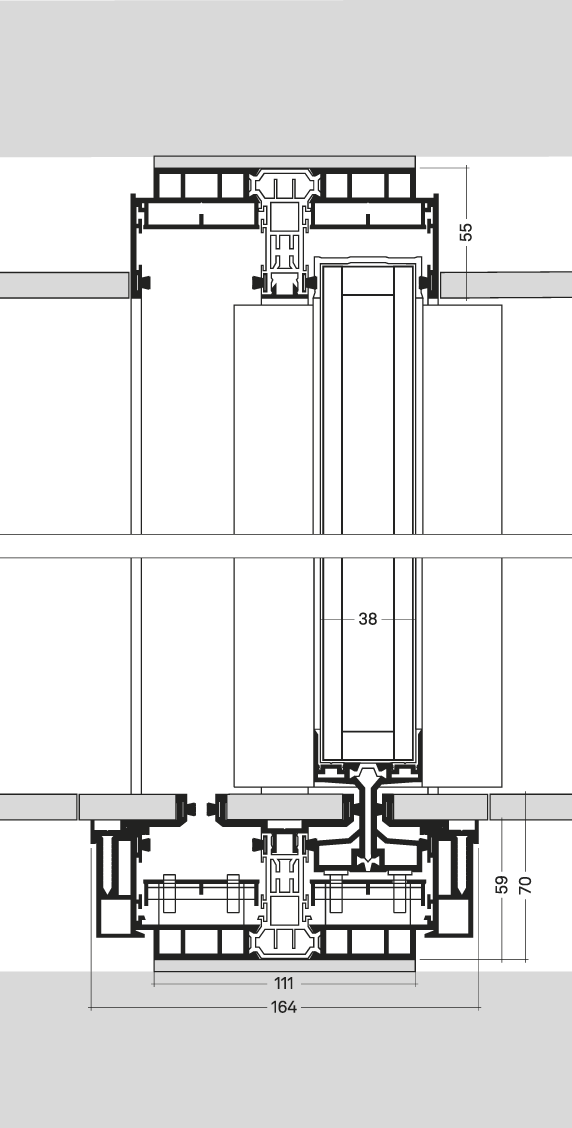

VERTICAL SECTION

TYPOLOGIES

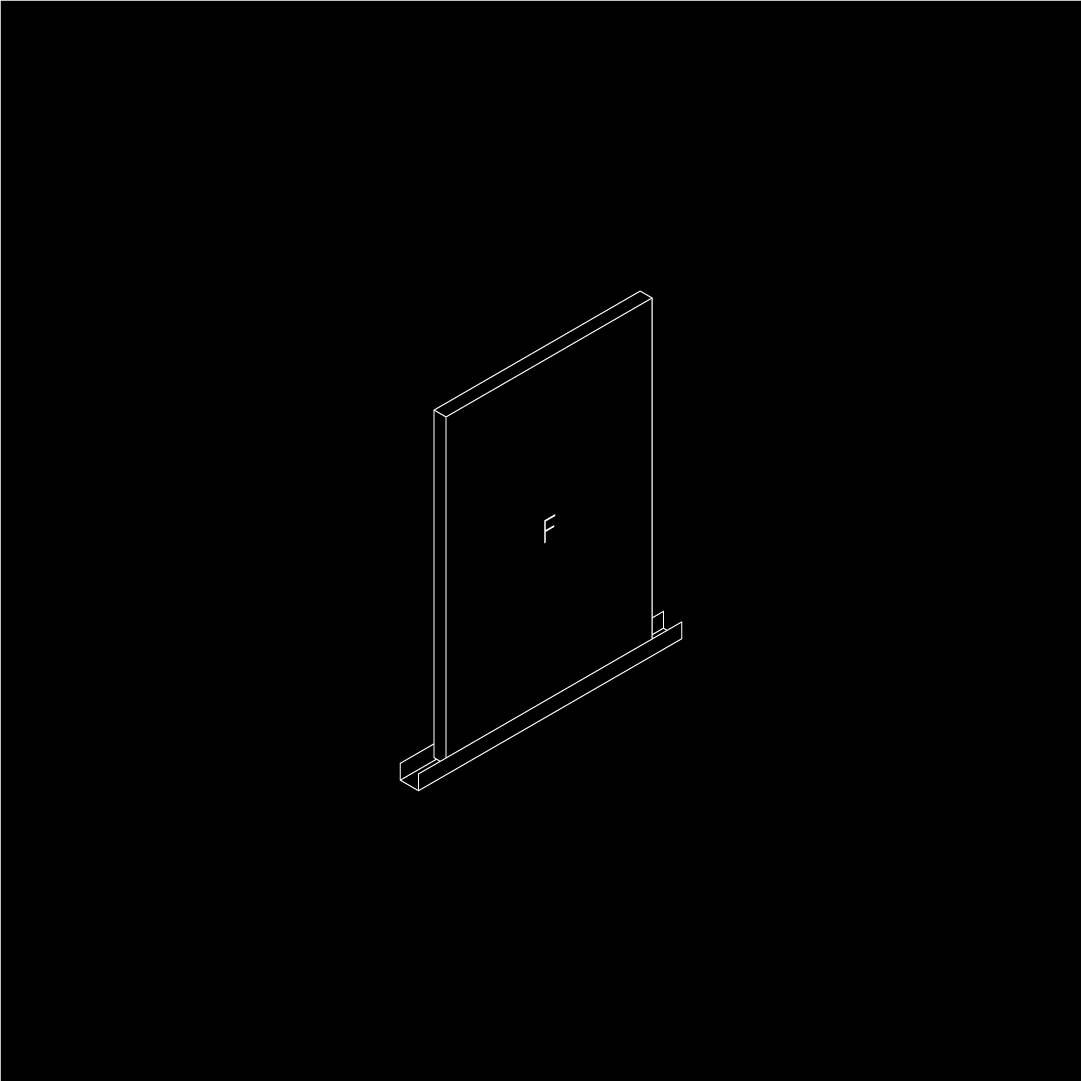

FIXED MONORAIL
fixed_monorail

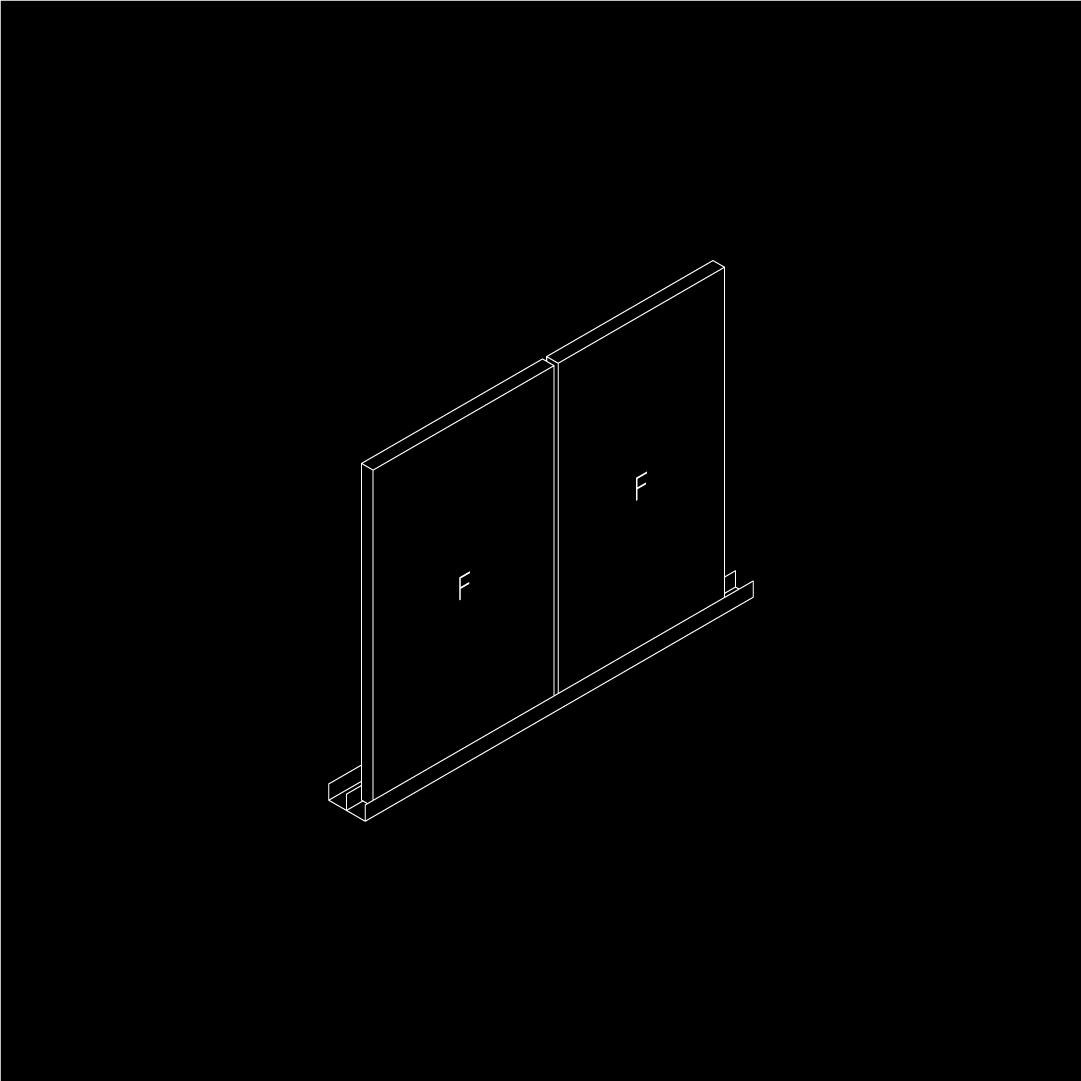

FIXED BIRAIL
fixed_birail

CUSTOMIZATION

LYRICAL frames are crafted and finished to meet the highest European standards. Their anodised and powder-coated surface finishes adhere to the rigorous QUALANOD, QUALICOAT, and QUALIMARINE certifications, ensuring durability, weather resistance, and long-lasting beauty.

LAQUERED

RAL 9110 MATE
CREAMRAL 9110 MATE
RAL 1035
METALLIC BEIGERAL 1035
RAL 9007
ALUMINUM GRAYRAL 9007
RAL 7012 GRAY
BASALT GRAYRAL 7012 GRAY
RAL 7016 MATE
COALRAL 7016 MATE
BLACK RAL 9005
MATEBLACK RAL 9005

TEXTURED

MARRON D'INDE
MARRON D'INDE
MARS
MARS
BLUE 600 SABLÉ
BLUE 600 SABLÉ
GRIS 900 SABLÉ
GRIS 900 SABLÉ
NOIR 200 SABLÉ
NOIR 200 SABLÉ
NOIR 900 SABLÉ
NOIR 900 SABLÉ

ANODISED

SATIN NATURAL
SATIN NATURAL
SATIN GOLD
SATIN GOLD
SATIN LIGHT BRONZE
SATIN LIGHT BRONZE
SATIN MEDIUM BRONZE
SATIN MEDIUM BRONZE
SATIN DARK BRONZE
SATIN DARK BRONZE
SATIN BLACK
SATIN BLACK
