LYRICAL MUSE I
The LYRICAL MUSE III system combines advanced technology, elegant design and high performance. Compatible with triple hyper-insulated glass up to 52 mm, it is ideal for cold climates, ensuring energy efficiency, thermal and acoustic comfort, as well as high security against intrusions. It allows the integration of large-scale glass panels, up to 12 meters high, with smooth sliding system, making it perfect for those who value sophistication and functionality.
MUSE I PERFORMANCES
THERMAL TRANSMITTANCE (Ug = 1.0)Uw = 1,22 W/m²K (EN 10077)
AIR PERMEABILITYCLASS 4 (EN 12207)
WATER TIGHTNESSE750 (EN 12208)
WIND LOAD RESISTANCE (Standard interlock)A5 (EN 12210)
SOUND INSULATIONRw 41 dB (EN ISO 717-1)
SECURITYRC2 / WK2 (EN 1628, 1629, 1630)

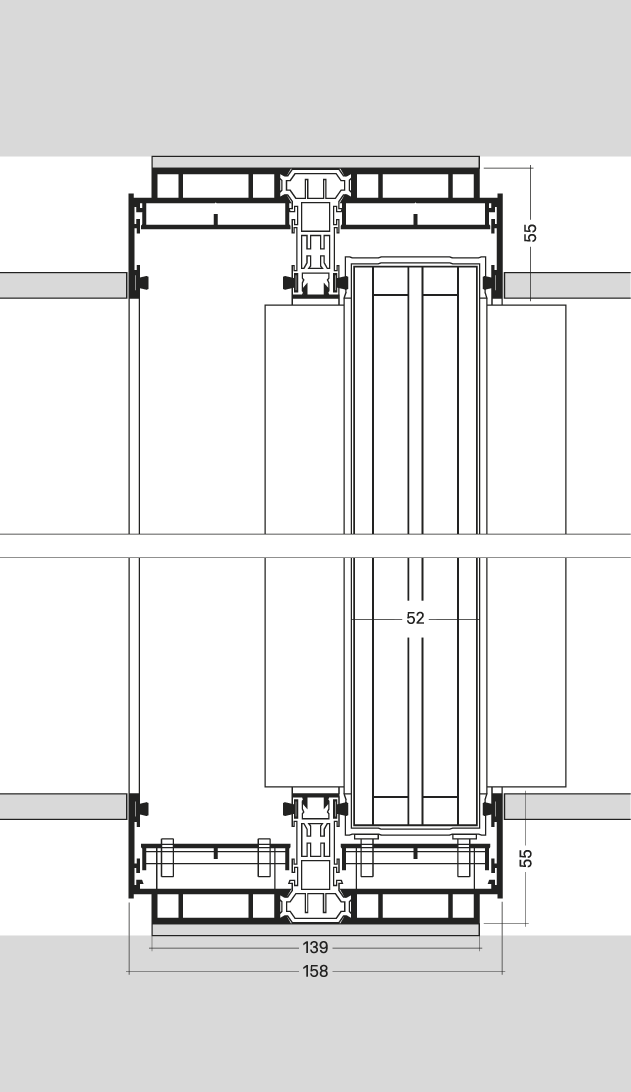

TECHNICAL DRAWINGS
TYPOLOGIES
FIXED MONORAIL
FIXED BIRAIL
CUSTOMIZATION
LYRICAL frames are crafted and finished to meet the highest European standards. Their anodised
and powder-coated surface finishes adhere to the rigorous QUALANOD, QUALICOAT, and QUALIMARINE certifications, ensuring durability, weather resistance, and long-lasting beauty.
LAQUERED
CREAMRAL 9110 MATE
RAL 1035METALLIC BEIGE
ALLUMINUM GRAYRAL 9007
BASALT GRAYRAL 7012 MATE
COALRAL 7016 MATE
BLACKRAL 9005 MATE
TEXTURED
Marron D'inde
Mars
Blue 600 Sablé
Gris 900 Sablé
Noir 200 Sablé
Noir 900 Sablé
ANODISED
Satin Natural
Satin Gold
Satin Light Bronze
Satin Medium Bronze
Satin Dark Bronze
Satin Black
